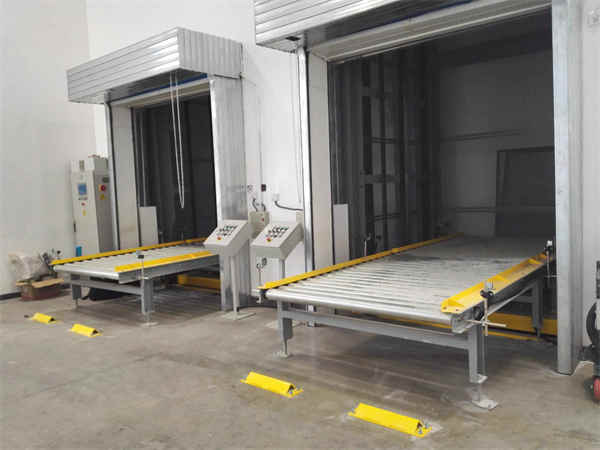

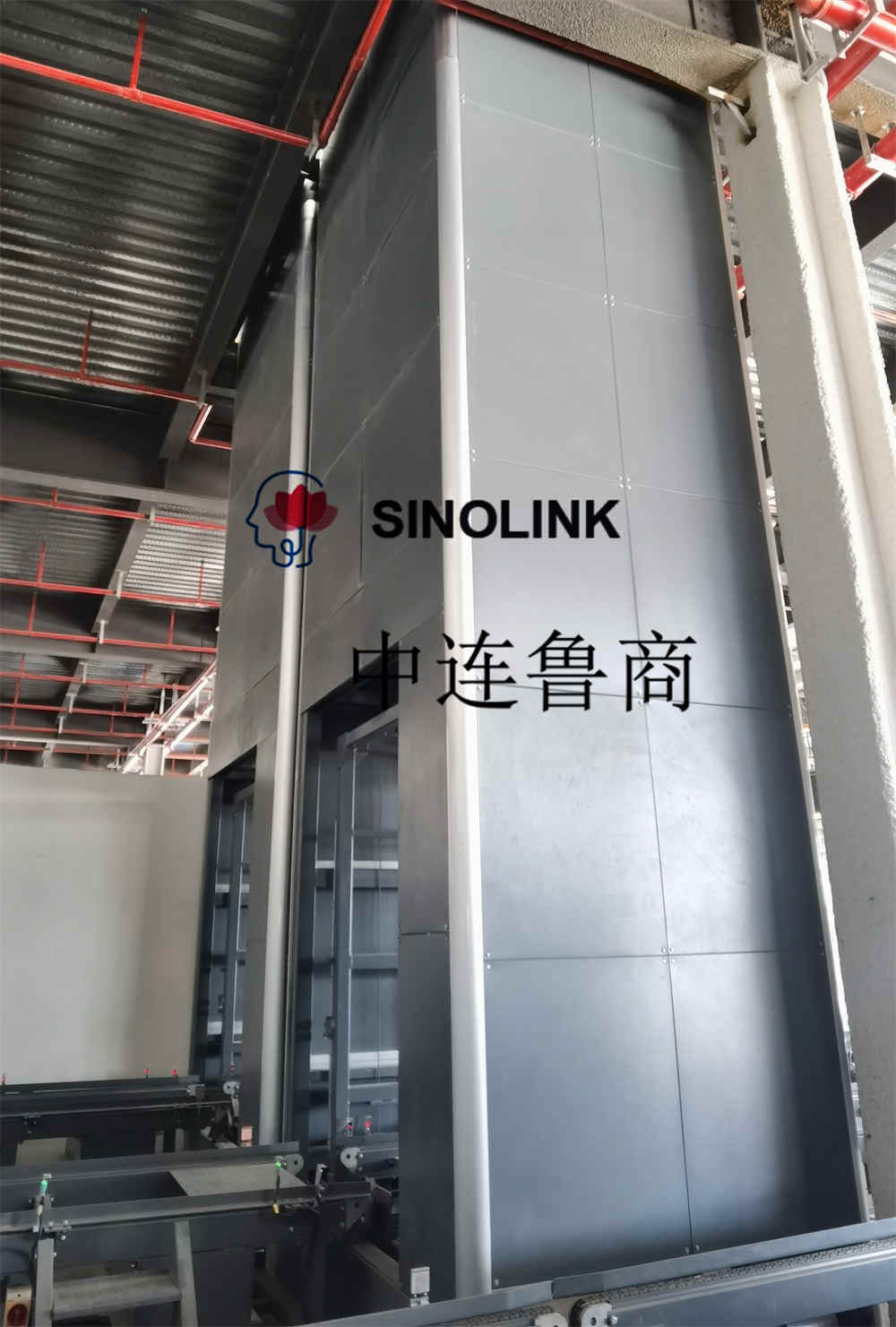

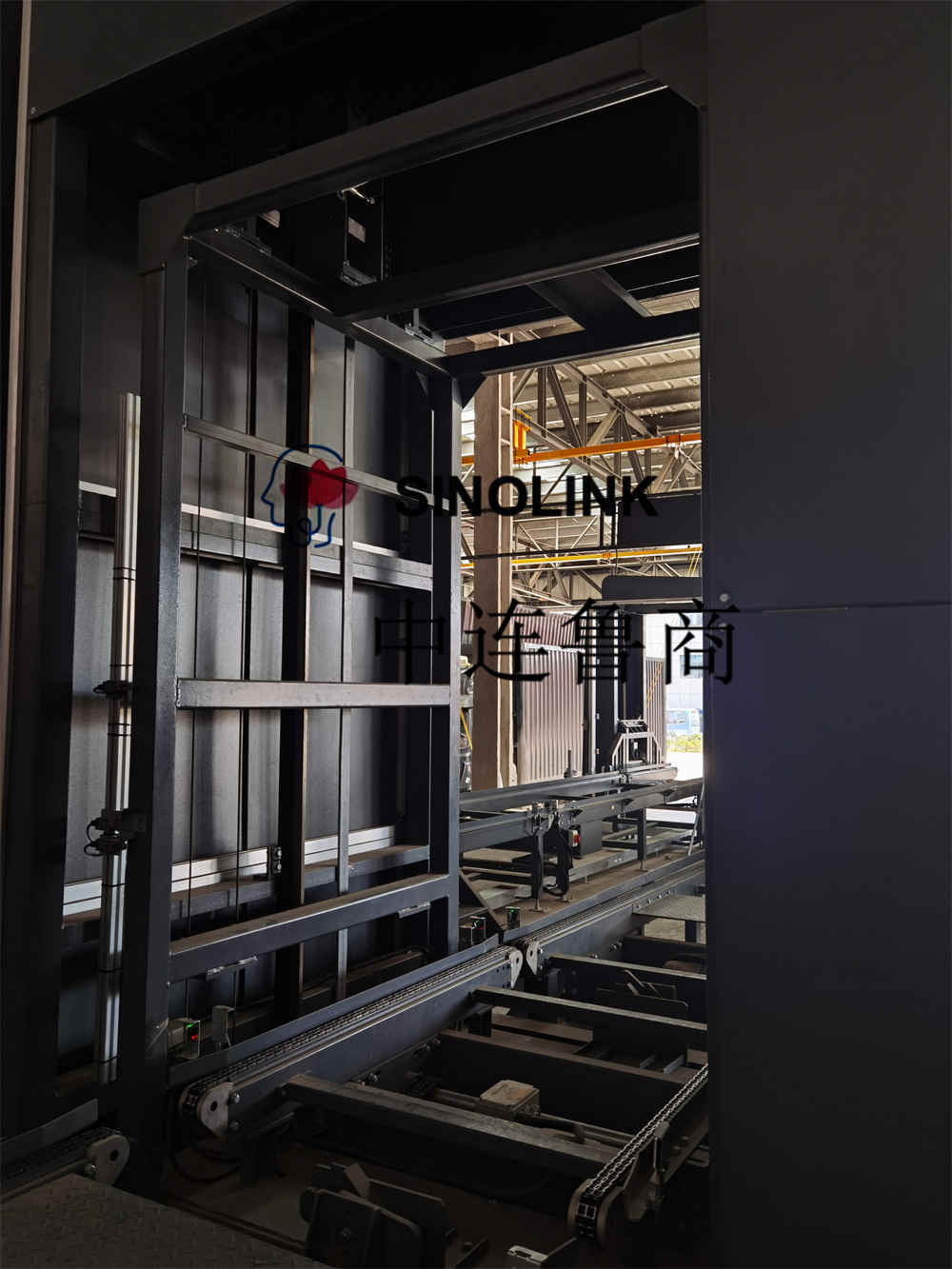

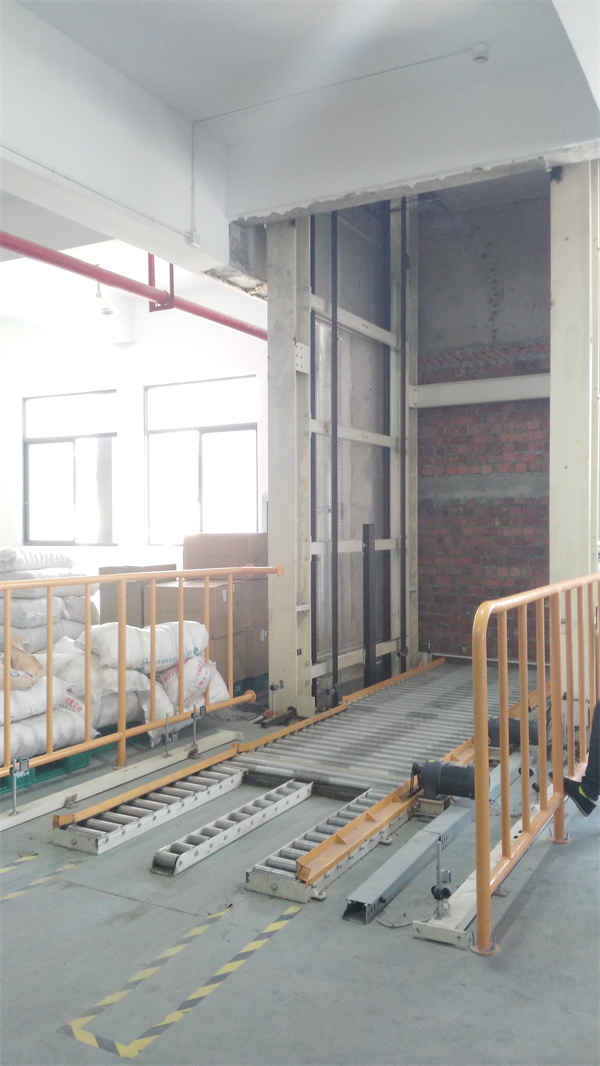

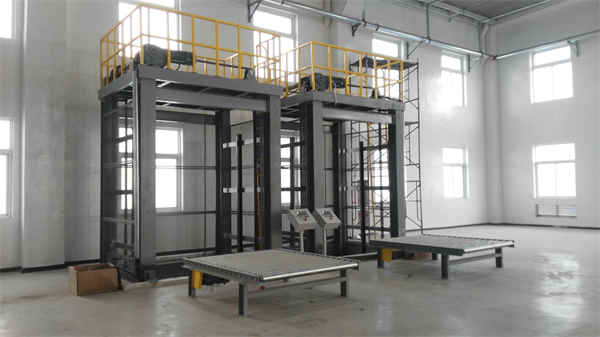

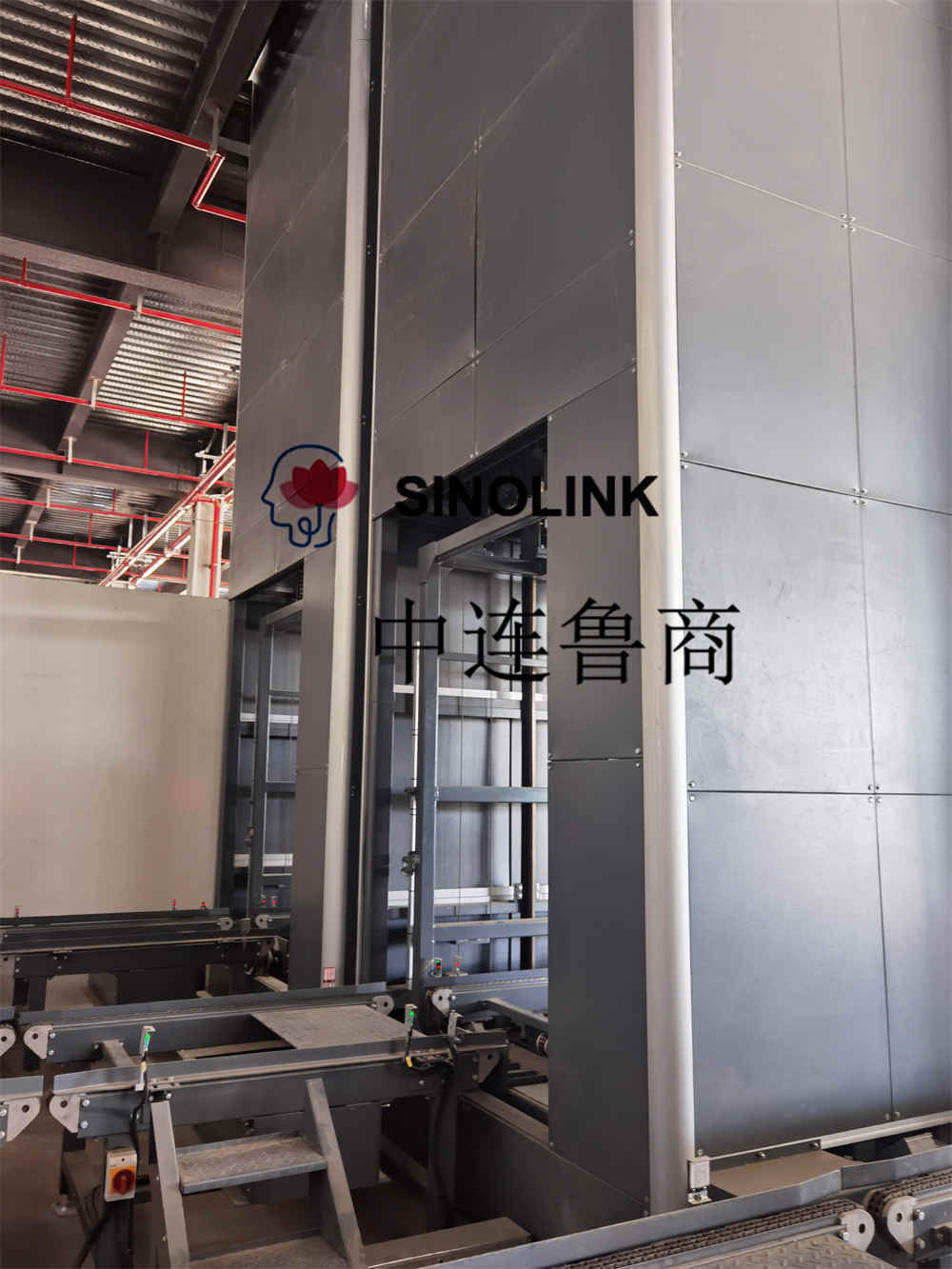

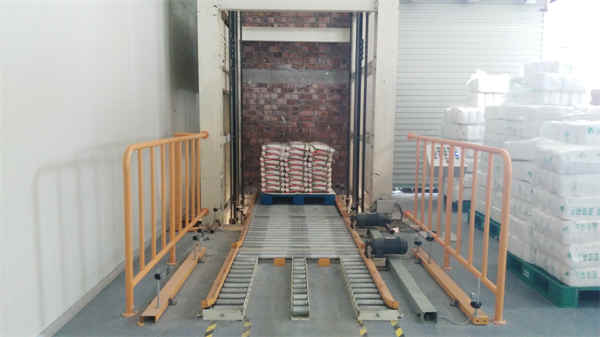

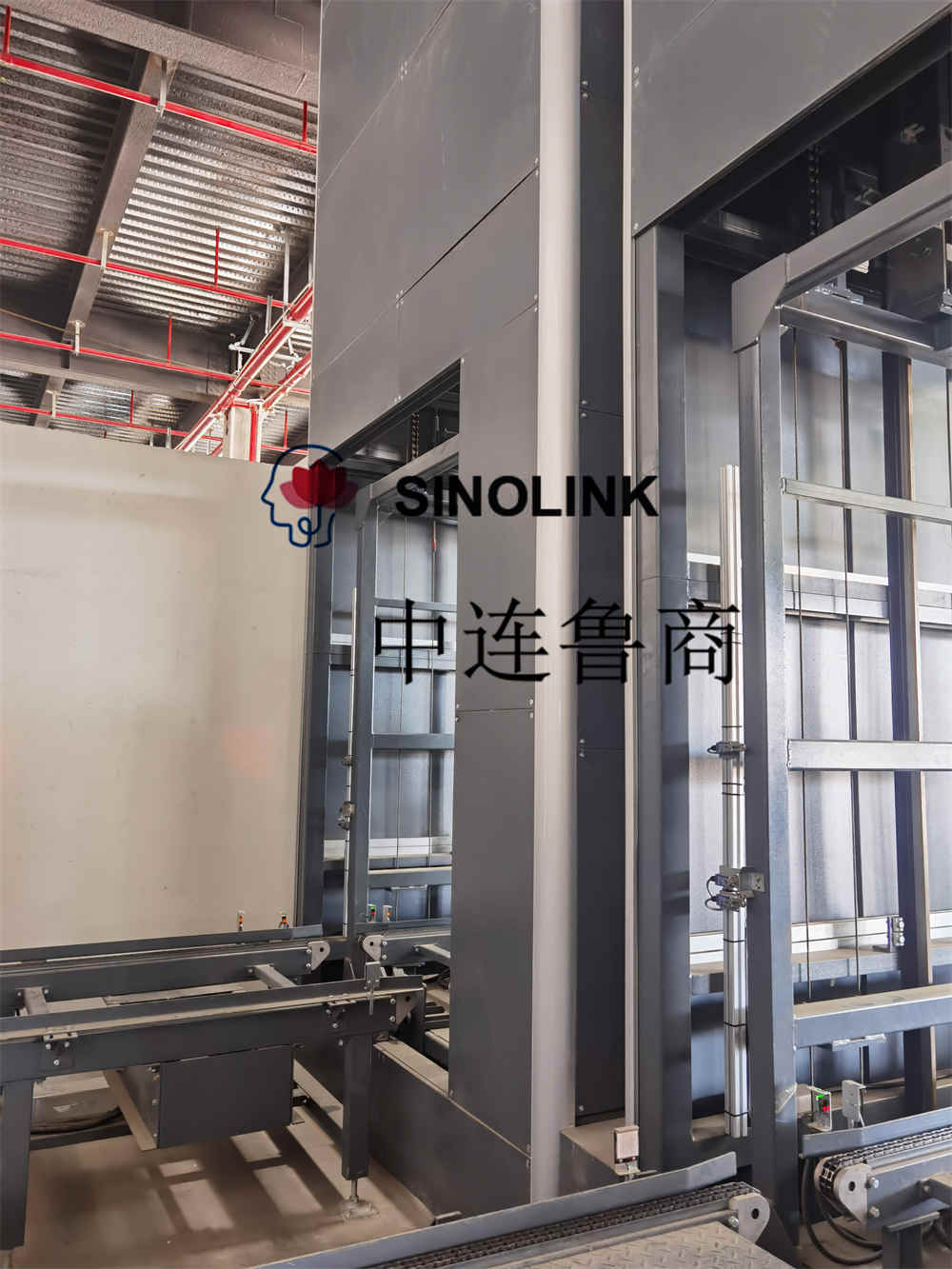

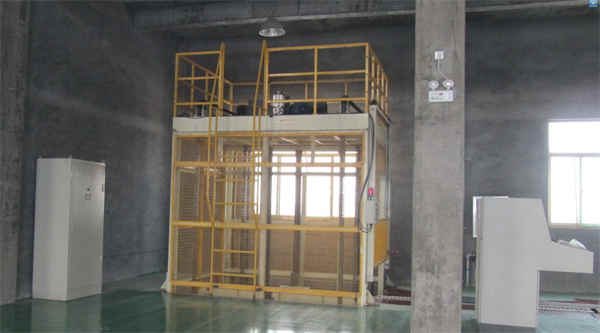

Vollautomatischer unbemannter vertikaler Hubförderer

Hebeausrüstung für vollautomatische unbemannte Hubförderer:

Dieser vollautomatische, unbemannte vertikale Hebeförderer für schwere Lasten eignet sich zum vertikalen Heben von Kartons, gewebten Säcken, Kunststofffässern und verschiedenen Waren.

1 Der Grundrahmen
1 Material: 80*80mm aluminum alloy profiles, linked and assembled by means of screws
two Protective screening: exterior body adopts obvious natural glass

2 Fördersystem
1 The most important chain makes use of carbon metal 16A-1 curler chain whose pitch is 25.4mm with W-2 bending plates bilaterally.
two The pallet chain adopts unidirectional bending, pitch 25.4mm.
three The pallet makes use of 9269K aluminium profile, the floor is macromolecule plastic

3 Antriebssystem
1 The foremost axis makes use of carbon metal with nigrescence treatment, diameter 55mm
two Drive sprocket makes use of 16A-17 duplex chainwheel. Driven wheel makes use of 16A-17 easy chainwheel
three Tension bridle gadget makes use of T208 undeniable bearing housing
four The energy is SEW equipment reducer motor
4 Steuerungssystem
1 The manipulate software is Taiwan Yonghong PLC programming
two Detecting optoelectronic swap is Omron brand
three The manage cupboard is made of carbon steel

5 Arbeitsablauf des Vertikalhebeförderers
The product to be delivered is ready on the conveying line related to the elevator. When the photoelectricity detects that the pallet is in place, the PLC troubles a command. The blockading gadget will launch or the conveying line will start, and releases a product to the pallet. When the 2nd product arrive at the ready position, the block will raise or the conveying line stops and starts to wait for the photoelectricity to observe the subsequent pallet, then the PLC programming will trouble a command once more to launch the product.

Detaillierte Anforderungen, bitte kontaktieren Sie uns jederzeit. Wir müssen Ihnen helfen, das optimalste Programm für Sie bereitzustellen!
